Overband Magnet(RCYQII)

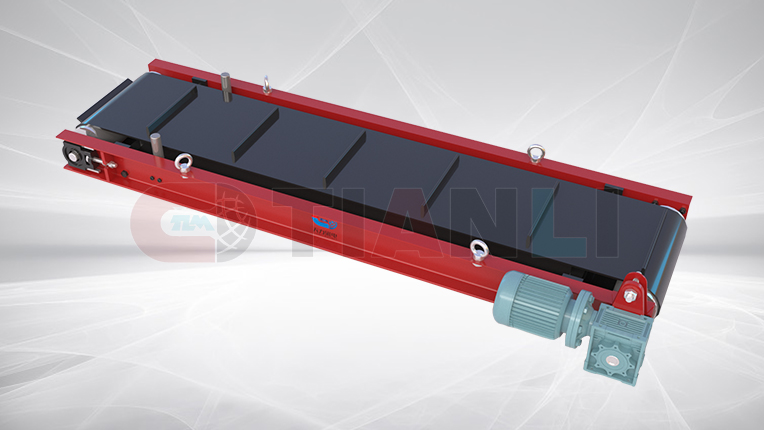

RCYQII Light Self-clean Overband Magnet developed on the basis of RCYQ Overband Magnet improved the belt,use PVC leather belt,the magnetic source is more uniform, effective for renewable resources of iron in the flat belt.
Sortable Materials:
  • Product Details
  • Technical Parameters

RCYQII Light Self-clean Overband Magnet developed on the basis of RCYQ Overband Magnet improved the belt,use PVC leather belt,the magnetic source is more uniform, effective for renewable resources of iron in the flat belt.

【Scope of Application】:

Mainly aimed at the tire crushing production line of renewable resources, electronic waste recycling production line of relatively small iron magnetic separation, can be applied to a wider belt, to save costs for customers.

【Advantages】:

● Adopt PVC unloading iron belt, running more stable, light, low noise

● The equipment is light and easy to install; Wider belt conveyor in renewable resources can be used to save purchasing cost for customers

 Magnetic can be strong and weak collocation, good sorting effect

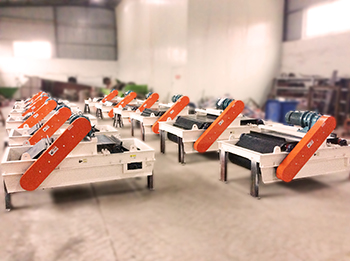

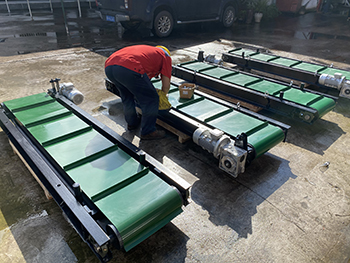

The magnets are prepared for delivery:

overband magnet packing.jpg overband magnet packing2.jpg

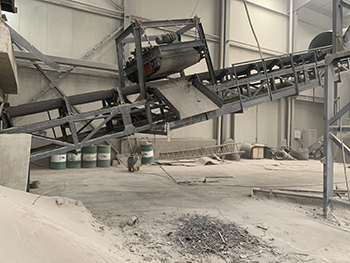

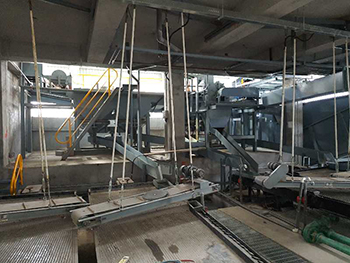

The cases recently:

overband magnet site1.jpg overband magnet site2.jpg
