Overband Magnet(RCYD)

RCYDII self-clean permanent overband Magnet iron remover is added on the basis of RCYB suspension magnet with frame, unloading iron belt, driving motor, driving drum, etc., convenient iron unloading, continuous work.
Sortable Materials:
  • Product Details
  • Technical Parameters

RCYDII self-clean permanent overband Magnet iron remover is added on the basis of RCYB suspension magnet with frame, unloading iron belt, driving motor, driving drum, etc., convenient iron unloading, continuous work.

【Advantages】:

●  Adopting the computer simulation to design the Magnetic circuit, with perfect double magnetic pole structure, higher magnetic intensity, higher gradient, higher magnetic force. Product Advantages

●  Waist drum-shaped drum structure, with automatic correction function,fully sealed bearing,good sealing,can adapt to a variety  of harsh environments.

●  Waist drum-shaped drum structure, with automatic correction function,fully sealed bearing,good sealing,can adapt to a variety of harsh environments.


The products:

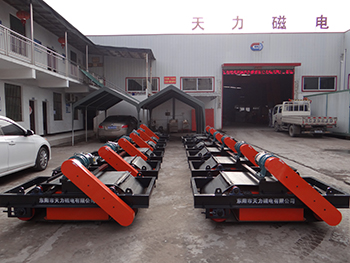

overband magnet packing1.jpg overband magnet packing2.jpg


The delivery:

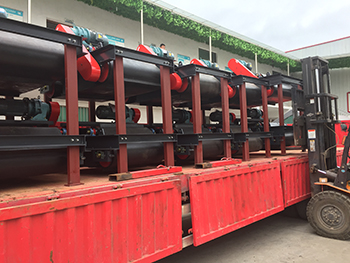

overband magnet delivery1.jpg overband magnet delivery2.jpg


The cases recently

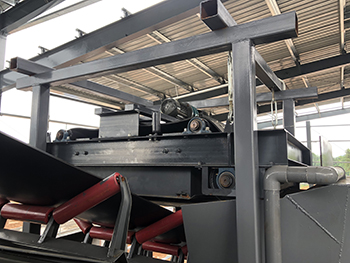

overband magnet site2.jpg overband magnet site3.jpg

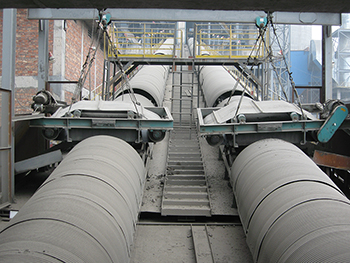

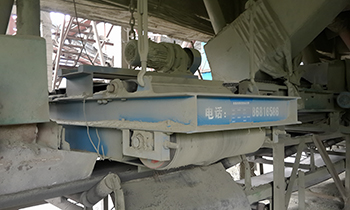

overband magnet site6.jpg overband magnet site5.jpg

Technical Parameters
ModelSuitable belt width

(mm)

Material thickness

(mm)

Suspended Height

(mm)

Magnet IntensityPower

(kw)

Belt SpeedOverall DimensionWeight(kg)
L×W×H(mm)Ring center distance
RCYD-5500
80
150
63(MT)1.5
≤2.5m/s1650*835*9401100*635580
RCYD-66001252001.51700*935*9401150*735700
RCYD-6.565015020070(MT)1.51750*985*9401200*785700
RCYD-8800
200
250
2.2
1900*1140*9601350*935820
RCYD-1010002503003.02140*1350*10101590*11351220
RCYD-1212003003504.02340*1550*10601790*13351420
RCYD-141400
350
400
5.5
2540*1750*10601990*15351730
RCYD-1616004004507.53040*1550*8602190*13352140
