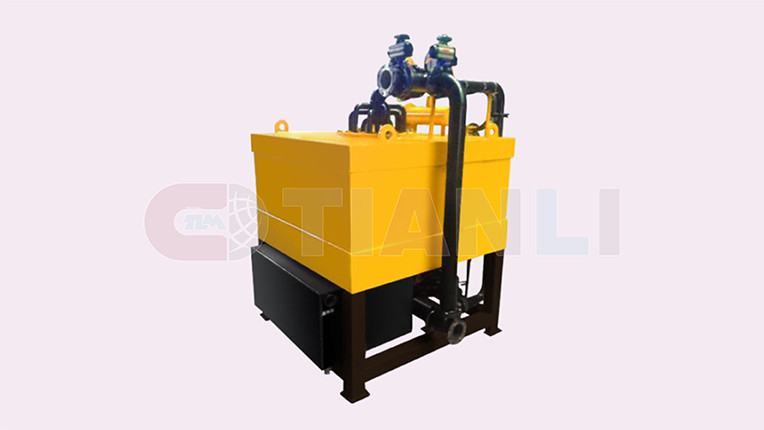

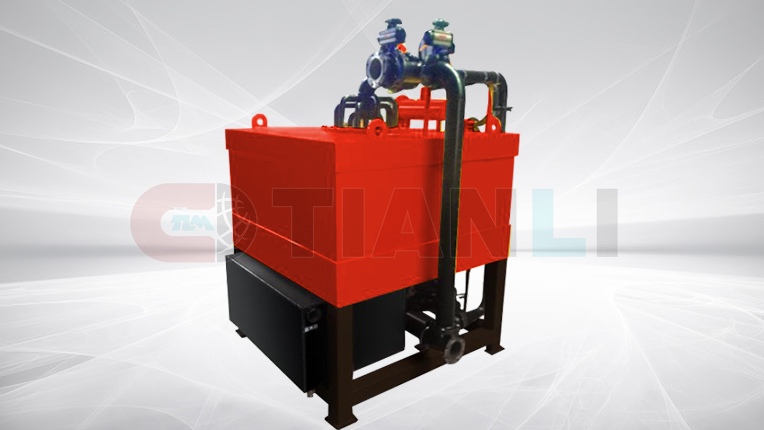

ElectroMagnetic Separator(TLSL)

It is a new and efficient iron remover. The deionized water circulate inside the hollow conductor by circulating pump, remove the heat generated by electricity wires, due to this particular structure.Water cooling electromagnetic automatic slurry magnetic
Sortable Materials:
  • Product Details
  • Technical Parameters

【Advantages 】:

High magnetic intensity; small internal temperature rise, decay magnetic intensity after long-running; long working cycles; wide ore-feed size and concentration adaptability; high beneficiation efficiency; easy operation and maintenance.



Purposes 】:

1.Black metal: hematite, martite, limonite, siderite, chromite, manganese, etc.

2.Nonferrous metals: Separation of wolframite and garnet and other minerals.

3.Rare metal: recycling of tantalite, monazite and other minerals.

4.Non-metal: purifying of quartz, feldspar, kaolin and other minerals.

5.Other industries: iron and steel mines, ,waste water treatment of power plants, cleaning polluted industrial chemicals.


Customer site:



Technical parameters
ModelProcessing capacity(m3/h)

Pipe size(mm)

 Magnetic cavity diamete(mm)

Fixed magnetic field (GS)Intput voltage(v)Maximum   outpour current(A)

Coil Maximum   Power(kw)

Size(mm)Weight(kg)
TLSL-60030-80100600500003802100752370x2000x265014730
TLSL-75040-100150750500003801400752600x2000x300021200
