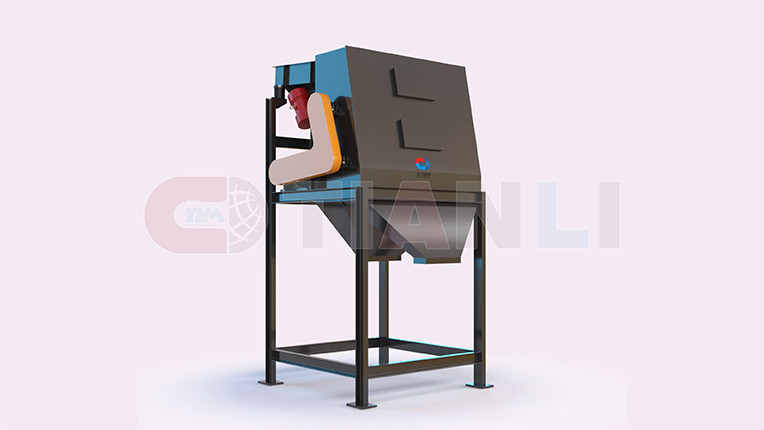

Dry Magnetic Separator(CXGA)

This product is a semi-magnetic open structure magnetic separation equipment fed from the upper part of the magnetic separation drum by a vibrating feeder; Magnetic field strength 800-8000GS optional, large iron absorption capacity, permanent magnet syste
Sortable Materials:
  • Product Details
  • Technical Parameters


This product is a semi-magnetic open structure magnetic separation equipment fed from the upper part of the magnetic separation drum by a vibrating feeder; Magnetic field strength 800-8000GS optional, large iron absorption capacity, permanent magnet system, energy saving; According to the situation of the equipment, the single stage or multi-stage magnetic separation, sorting effect is good.

The cases recently:

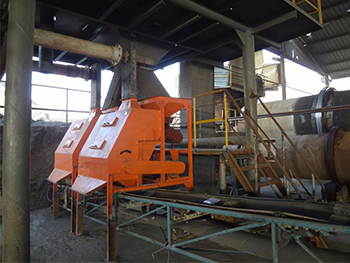

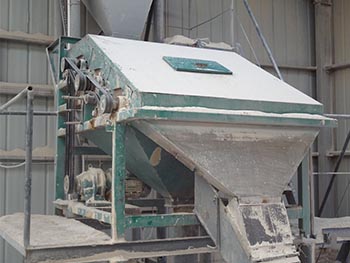

CXGA magnetic separator-11.jpg CXGA magnetic separator-12.jpg


Technical parameters
ModelDrum length(mm)Diameter(mm)Drum Numbers(pcs) Material Size(mm)Motor Power(kw)Magnet IntensitySpeed
CXGA-3240-I400
Φ320150.75

800-8000(GS)

17-28(r/min)
CXGA-3240-II260.75
CXGA-3260-I600
150.75
CXGA-3260-II260.75
CXGA-3280-I800
151.1
CXGA-3280-II261.1
CXGA-4060-I600
Φ400151.1
CXGA-4060-II261.1
CXGA-4080-I800
161.1
CXGA-4080-II281.5
